Rammer 777
| Minimum working weight | 385 kg |
|---|---|
| Impact rate | 500-1700 bpm |
| Operating Pressure | 90-140 bar |
| Pressure relief | 220 max bar |
| Oil flow range | 40-120 I min |
| Back pressure | 20 max bar |
| Input power | 28 kW |
| Tool diameter | 80mm |
| Carrier weight allowed range | 4.3-9.5 Ton |
| Noise level measured sound power level LWA dB | 120 |
| Noise level guaranteed sound power level LWA dB | 124 |

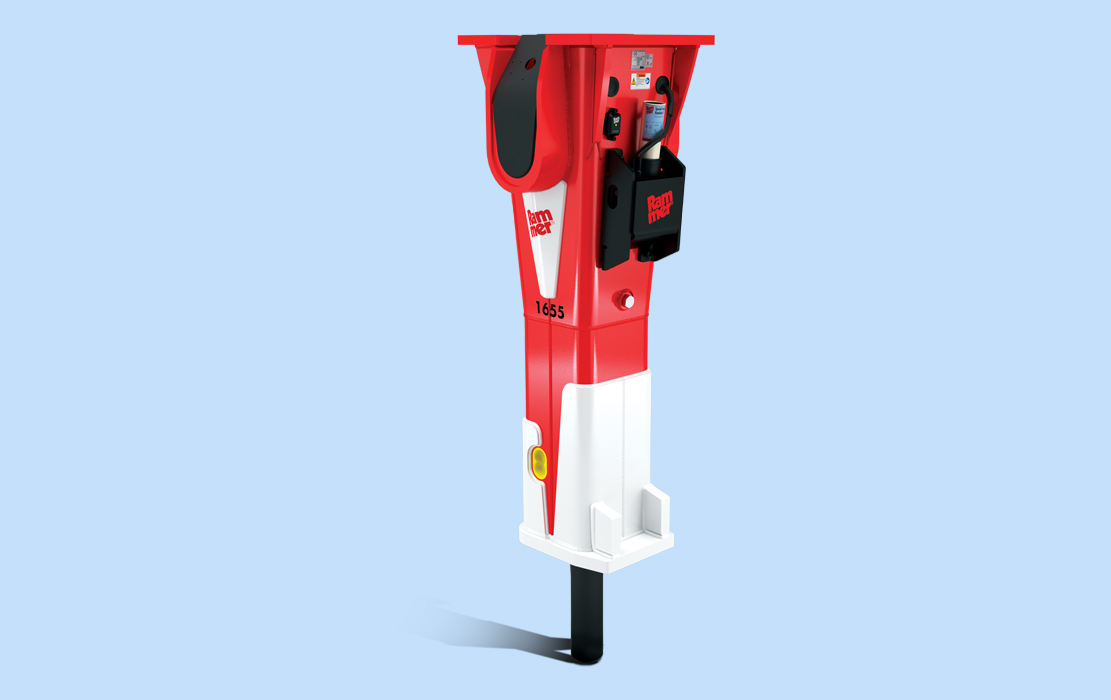

Rammer 1655
| Minimum working weight | 1090 kg |
|---|---|
| Impact rate | 540-920 bpm |
| Operating Pressure | 135-145 bar |
| Pressure relief | 220 max bar |
| Oil flow range | 90-130 I min |
| Back pressure | 10 max bar |
| Input power | 31 kW |
| Tool diameter | 115 mm |
| Carrier weight allowed range | 12-20 Ton |
| Noise level measured sound power level LWA dB | 123 |
| Noise level guaranteed sound power level LWA dB | 127 |

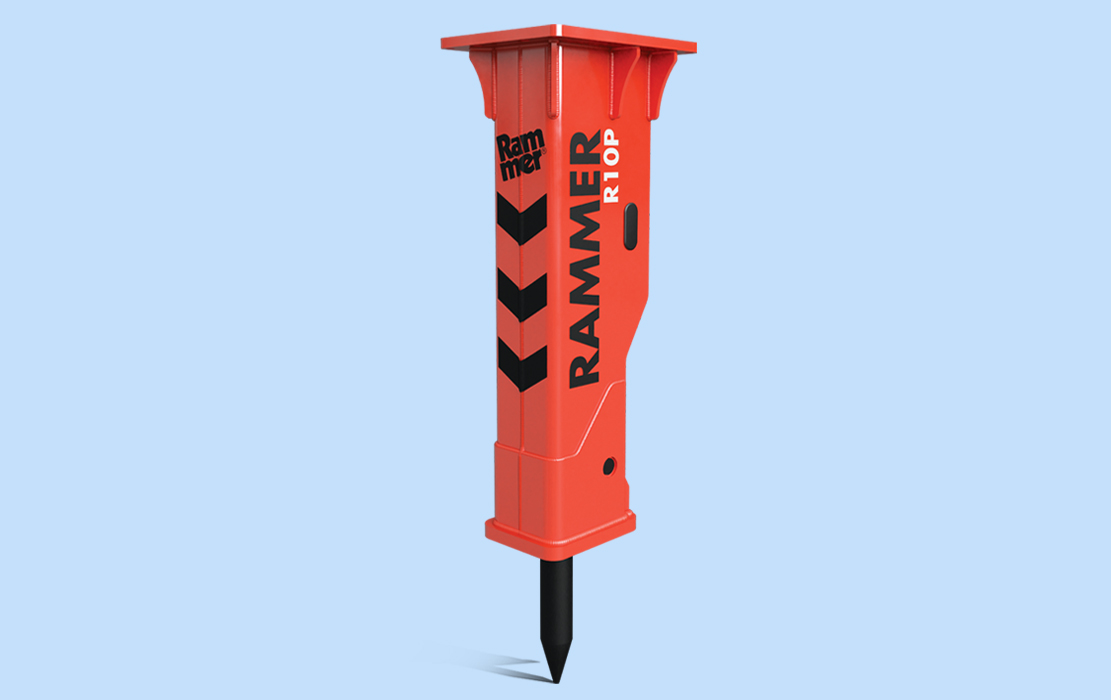

Rammer R10P
| Minimum working weight | 530 kg |
|---|---|
| Impact rate | 450-950 bpm |
| Operating Pressure | 110-160 bar |
| Pressure relief | 220 max bar |
| Oil flow range | 50-95 I min |
| Back pressure | 15 max bar |
| Input power | 25 kW |
| Tool diameter | 85 mm |
| Carrier weight allowed range | 6.0 – 12 Ton |
| Noise level measured sound power level LWA dB | 119 |
| Noise level guaranteed sound power level LWA dB | 123 |

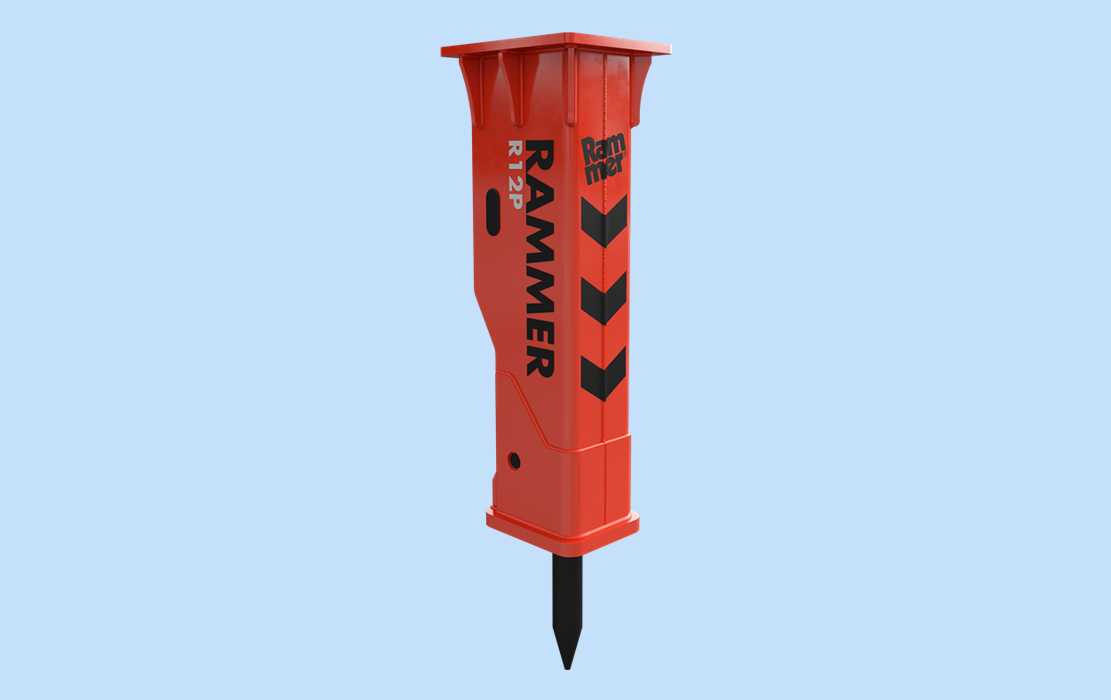

Rammer R12P
| Minimum working weight | 830 kg |
|---|---|
| Impact rate | 381-750 bpm |
| Operating Pressure | 100-160 bar |
| Pressure relief | 220 bar |
| Oil flow range | 60-100 I min |
| Back pressure | 15 max bar |
| Input power | 27 kW |
| Tool diameter | 90 mm |
| Carrier weight allowed range | 9-14 Ton |
| Noise level measured sound power level LWA dB | 121 |
| Noise level guaranteed sound power level LWA dB | 125 |

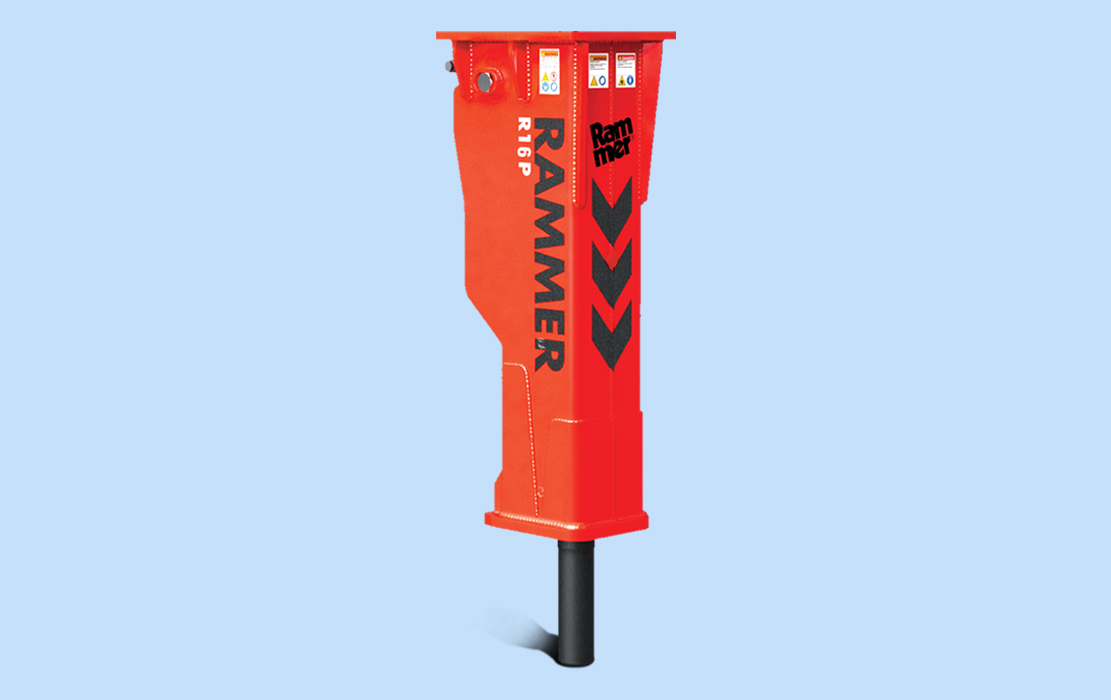

Rammer R16P
| Minimum working weight | 1080 Kg |
|---|---|
| Impact rate | 280-860 bpm |
| Operating Pressure | 160-180 bar |
| Pressure relief | 230 bar max |
| Oil flow range | 90-120 I min |
| Back pressure | 10 bar |
| Input power | 36 kW |
| Tool diameter | 110 mm |
| Carrier weight allowed range | 13-21 Ton |
| Noise level measured sound power level LWA dB | 117 |
| Noise level guaranteed sound power level LWA dB | 121 |

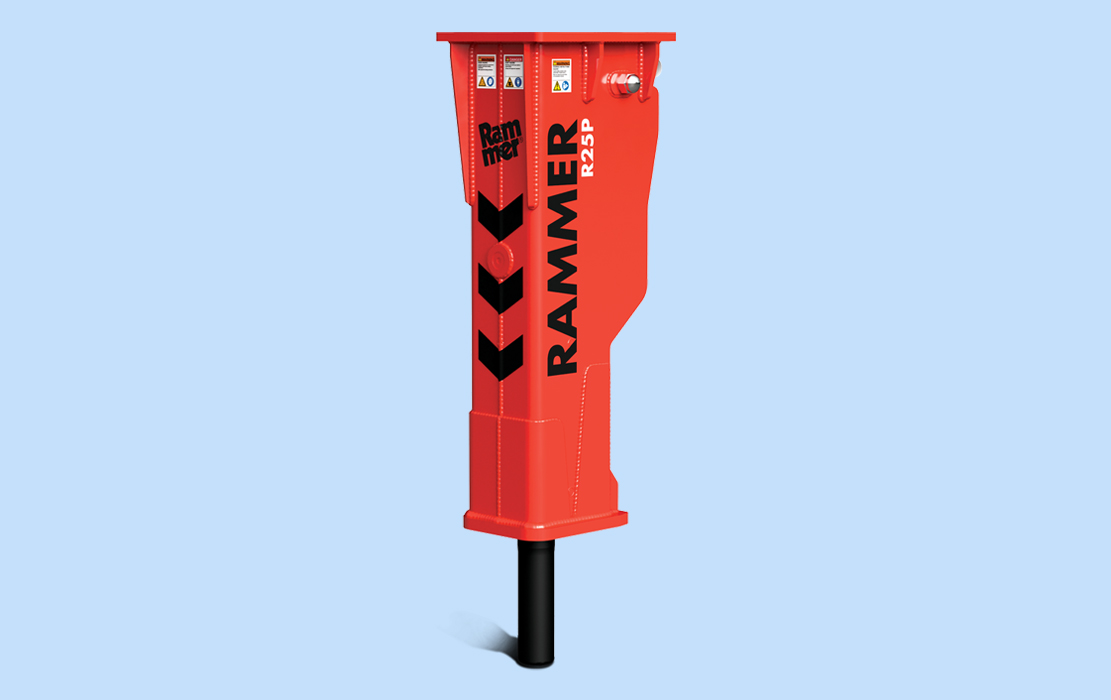

Rammer R25P
| Minimum working weight | 1650 kg |
|---|---|
| Impact rate | 390-700 bpm |
| Operating Pressure | 160-180 bar |
| Pressure relief | 250 bar max |
| Oil flow range | 130-170 I min |
| Back pressure | 10 max bar |
| Input power | 51 kW |
| Tool diameter | 135 mm |
| Carrier weight allowed range | 20-29 Ton |
| Noise level measured sound power level LWA dB | 118 |
| Noise level guaranteed sound power level LWA dB | 122 |

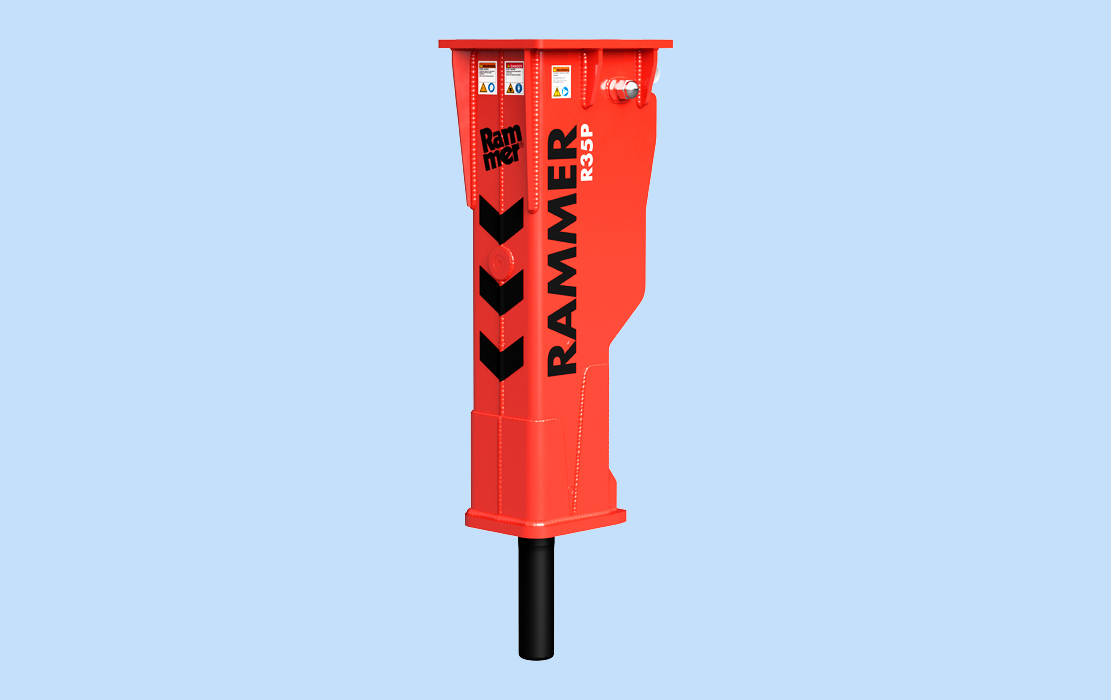

Rammer R35P
| Minimum working weight | 2320 kg |
|---|---|
| Impact rate | 400-700 bpm |
| Operating Pressure | 160-180 bar |
| Pressure relief | 250 max bar |
| Oil flow range | 150-200 I min |
| Back pressure | 10 max bar |
| Input power | 60 kW |
| Tool diameter | 150 mm |
| Carrier weight allowed range | 27-40 Ton |
| Noise level measured sound power level LWA dB | 118 |
| Noise level guaranteed sound power level LWA dB | 122 |

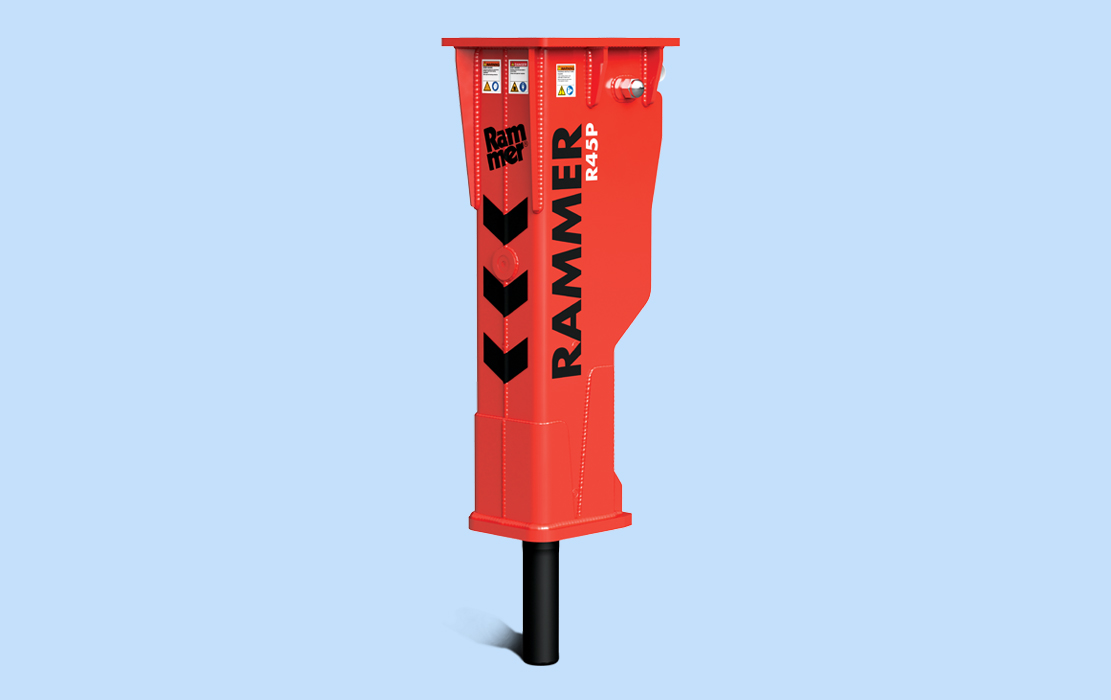

Rammer R45P
| Minimum working weight | 2950 kg |
|---|---|
| Impact rate | 360-630 bpm |
| Operating Pressure | 160-180 bar |
| Pressure relief | 230 max bar |
| Oil flow range | 200-250 I min |
| Back pressure | 10 max bar |
| Input power | 75 kW |
| Tool diameter | 165 mm |
| Carrier weight allowed range | 32-53 Ton |
| Noise level measured sound power level LWA dB | |
| Noise level guaranteed sound power level LWA dB |
