Ballast weight- 18 tonnes 50% reduction in Pin Hole Count achieved after sealing pass.

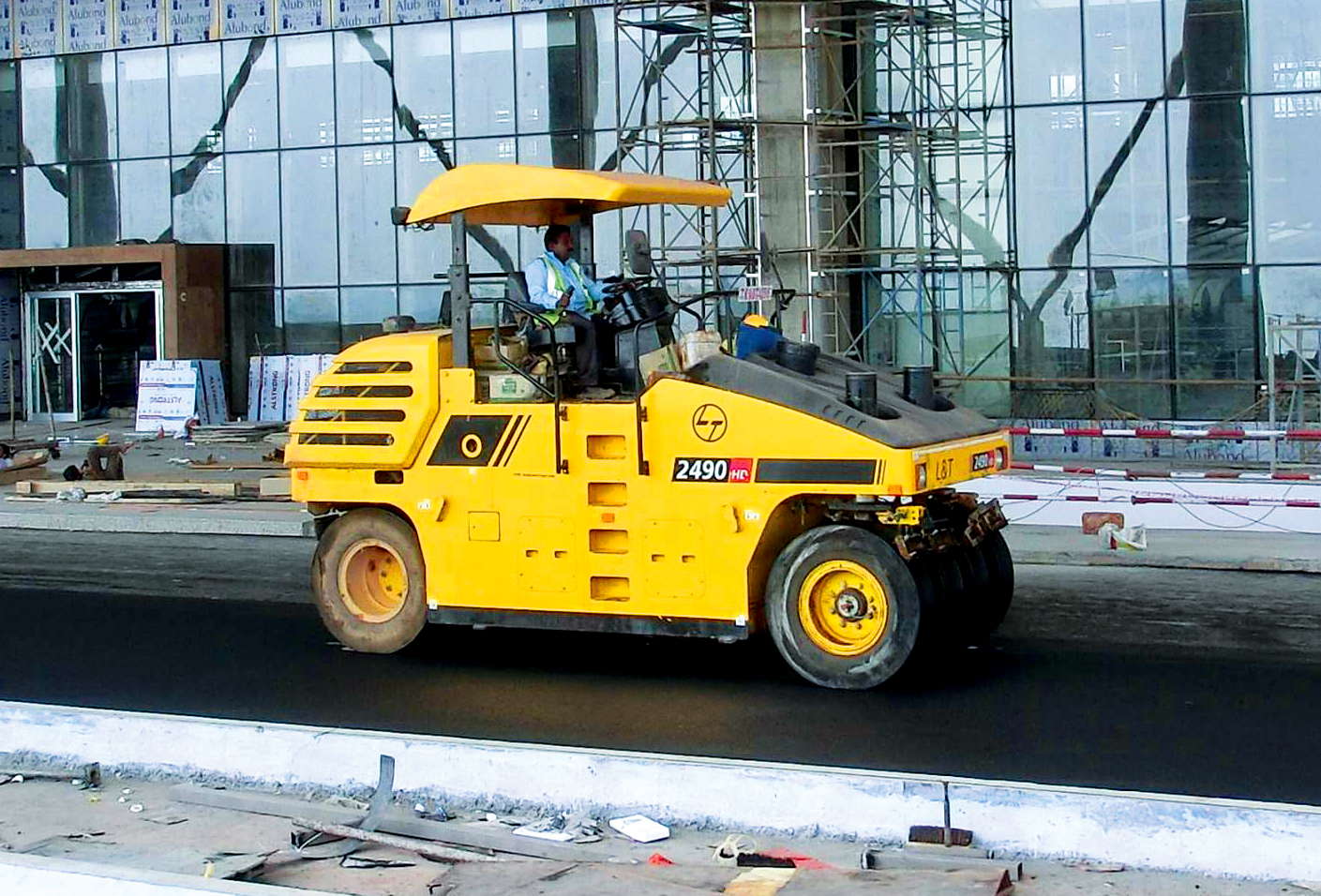

Operating at new parallel runway.

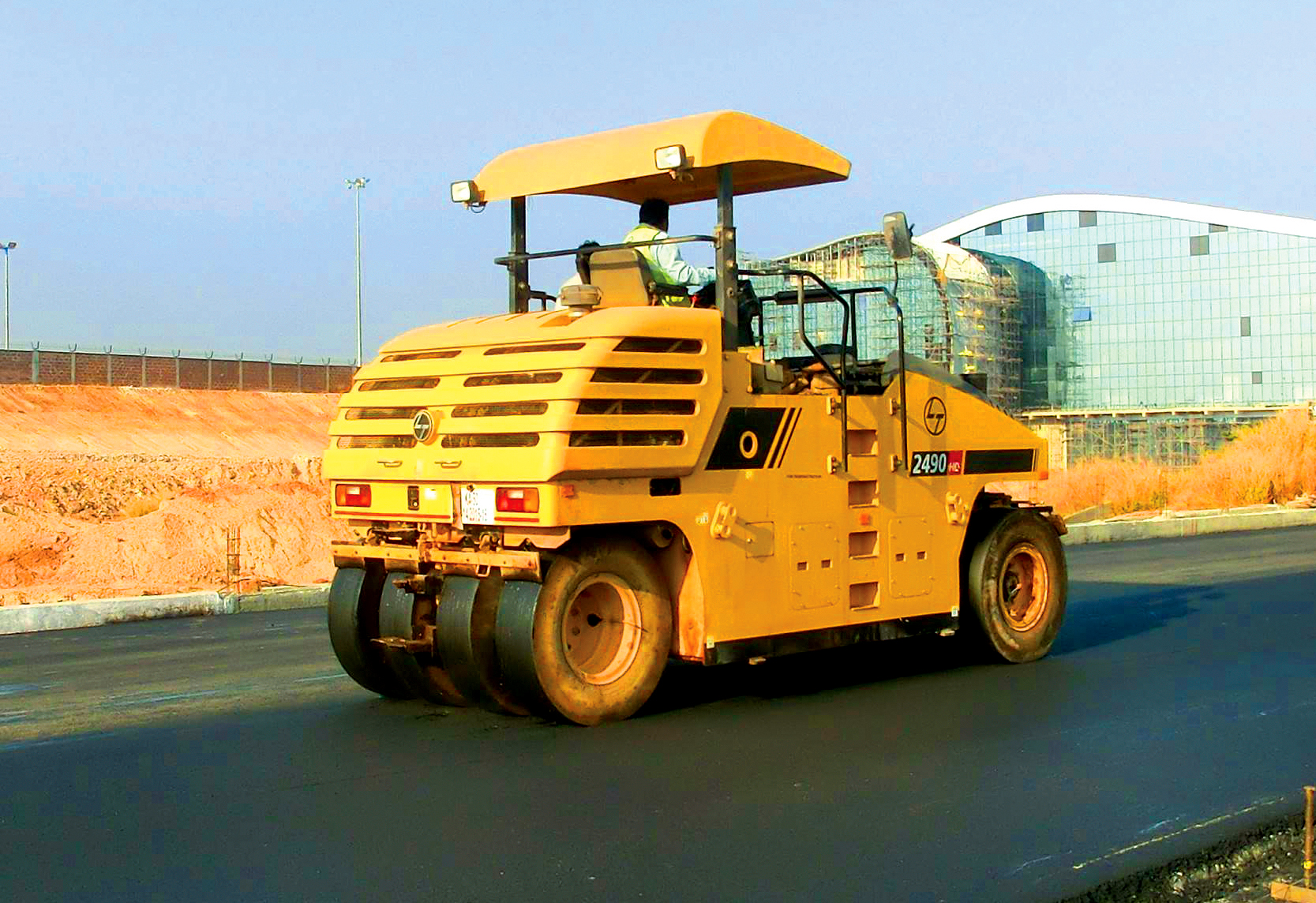

Machine compacting the bituminous concrete layer.

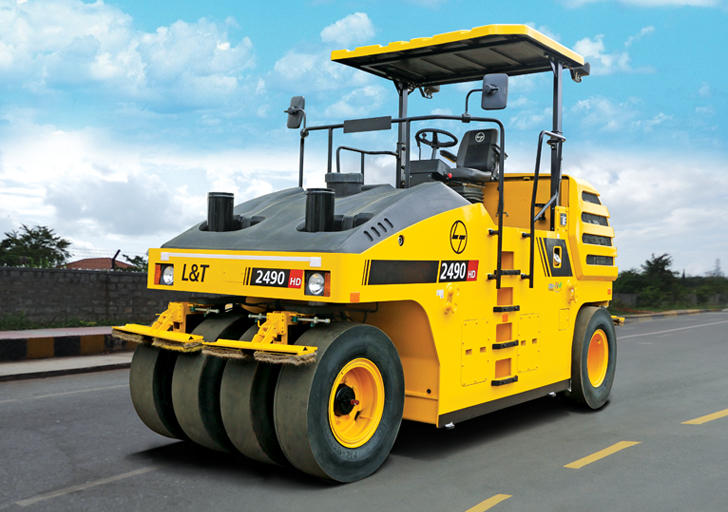

| Max. Operating Weight | 24000 kg |
|---|---|
| Engine | Mahindra MTorque 41025 – CEV-V |
| Gross Power | 102 hp 1950 rpm |
| Working Width | 2042 mm |
| Max. Weight Per Tyre | 3000 kg |
| Water Sprinkling | Pressurised water spray 2 nos. Diaphragm type pump |
| Tyre Size | 11 00-20 18 PR 4 front X 4 rear tyre combination |
| Tyre Overlap | 42 mm |
| Salient Features |
|
